Description

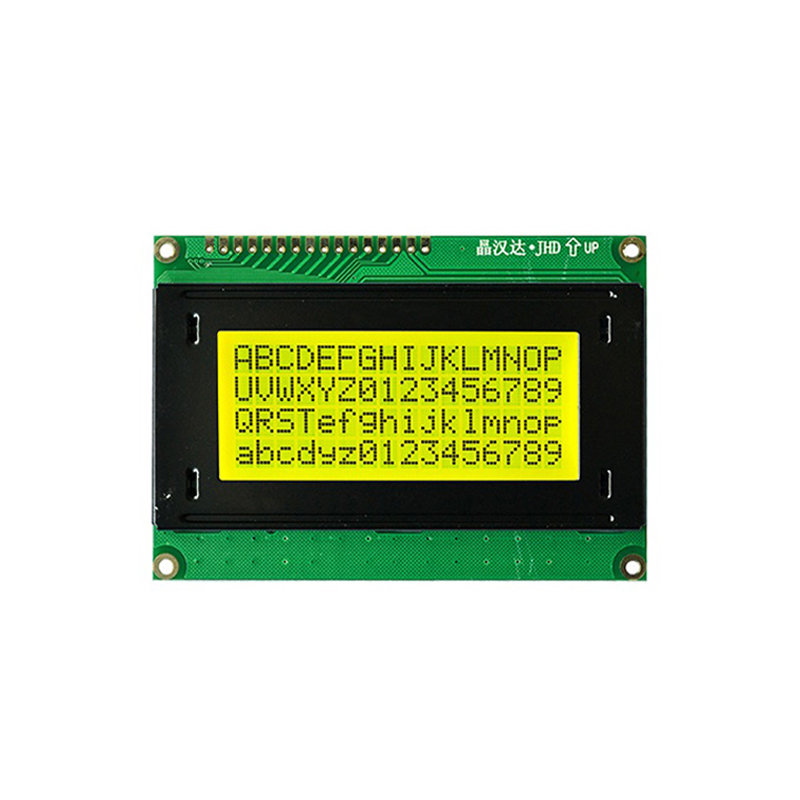

🔧 16×4 LCD Display Module – Large Character LCD with Backlight for Arduino & Microcontrollers
The 16×4 LCD Display Module is a high-capacity alphanumeric character display featuring 16 columns and 4 rows, capable of displaying 64 characters simultaneously. Based on the HD44780 controller with dual enable architecture, this LCD module provides twice the display area of standard 16×2 LCDs, making it ideal for complex menus, multi-line data display, and information-rich applications. Featuring adjustable blue or green backlight, high contrast display, and both parallel (4-bit/8-bit) and I2C interface options, this display is perfect for showing multiple sensor readings, detailed status information, scrolling text, and comprehensive user interfaces. Ideal for data logging systems, industrial controls, weather stations, robotics displays, and projects requiring extensive text output.
✨ Key Highlights
- 📺 16×4 Character Display – 64 total characters (4 lines × 16 chars)
- 📊 Double Display Area – 2× the capacity of 16×2 LCDs
- 💡 LED Backlight – Blue or green background illumination
- 🔌 HD44780 Compatible – Industry standard LCD controller
- 📡 Multiple Interfaces – Parallel (4/8-bit) or I2C module available
- ⚡ 5V Operation – Standard 5V logic level (3.3V with adapter)
- 📊 High Contrast – Adjustable contrast via potentiometer
- 🔧 Easy to Program – Uses same libraries as 16×2 LCD
- 📏 Compact for Capacity – ~80×58mm display area
- 💰 Great Value – More display area per dollar ($5-12)
📊 Technical Specifications
| 📺 Display Type | Character LCD (alphanumeric) |
| 📏 Display Format | 16 characters × 4 lines (64 total) |
| 🔤 Character Size | 5×8 dots per character |
| 💻 Controller | HD44780 or compatible (dual enable) |
| ⚡ Operating Voltage | 5V DC (logic and backlight) |
| 🔋 Current Draw | ~1-3mA (without backlight), ~80-150mA (with backlight) |
| 💡 Backlight | Blue or Green LED (varies by model) |
| 📊 Contrast | Adjustable via 10kΩ potentiometer |
| 🔌 Interface | 16-pin parallel (4-bit or 8-bit mode) |
| 📡 I2C Option | Available with I2C adapter module (2-wire) |
| 📏 Module Size | ~80×58×13mm (varies slightly by manufacturer) |
| 📺 Viewing Area | ~64×38mm (active display area) |
| 🌡️ Operating Temp | 0°C to +50°C (standard), -20°C to +70°C (extended) |
| ⚖️ Weight | ~45-55 grams |
🔌 Pin Configuration (16-Pin Standard)
| Pin 1 (VSS) | Ground (GND) – 0V |
| Pin 2 (VDD) | Power supply +5V |
| Pin 3 (V0/VEE) | Contrast adjustment (connects to potentiometer) |
| Pin 4 (RS) | Register Select (0=command, 1=data) |
| Pin 5 (R/W) | Read/Write (0=write, 1=read) – usually tied to GND |
| Pin 6 (E) | Enable signal (triggers data read/write) |
| Pin 7-10 (D0-D3) | Data pins (not used in 4-bit mode) |
| Pin 11-14 (D4-D7) | Data pins (used in both 4-bit and 8-bit modes) |
| Pin 15 (A/LED+) | Backlight anode (+) – connect to 5V via resistor |
| Pin 16 (K/LED-) | Backlight cathode (-) – connect to GND |
🎯 Perfect For
- 📊 Multi-Sensor Displays – Show temperature, humidity, pressure, time simultaneously
- 🌡️ Weather Stations – Display multiple weather parameters at once
- ⚙️ Industrial Control Panels – Machine status, multiple process values
- 📈 Data Logging – Real-time multi-parameter monitoring
- 🎮 Complex Menu Systems – Navigation menus with multiple options
- 🏭 Factory Automation – Production counters, status displays
- 🤖 Robotics – Detailed robot status, sensor readings, debugging
- 💻 System Monitoring – Computer/server stats, network information
🆚 16×4 vs 16×2 LCD Comparison
| Feature | 16×4 LCD | 16×2 LCD |
| Total Characters | ✅ 64 characters | 32 characters |
| Lines/Rows | ✅ 4 lines | 2 lines |
| Display Area | ✅ ~64×38mm | ~64×16mm |
| Wiring | Same (6+ pins) | Same (6+ pins) |
| Code Complexity | Same library, lcd.begin(16, 4) | lcd.begin(16, 2) |
| Size | ⚠️ 80×58mm (taller) | 80×36mm |
| Price | 💰 $5-12 | ✅ $3-8 |
| Best For | Multi-line data, menus | Simple displays, compact |
✅ Key Advantages
- 📊 Double Display Capacity – 64 chars vs 32 chars (16×2)
- 📈 Multi-Line Data – Display 4 different parameters simultaneously
- 🎮 Better Menus – Show more menu options at once
- 📝 Scrolling Text – More space for messages and information
- 🔌 Same Interface – Uses identical wiring as 16×2 LCD
- 💻 Easy Programming – Same library, just change lcd.begin(16, 4)
- 📏 Organized Layout – Better visual organization of information
- 💰 Cost Effective – More characters per dollar than 16×2
- 🎨 Professional Look – More impressive display for projects
- 🛡️ Proven Technology – Same reliable HD44780 controller
⚠️ Important Limitations
- 📏 Larger Size – Taller than 16×2, may not fit tight spaces
- 💰 Higher Cost – $2-4 more expensive than 16×2 LCD
- 💡 More Power – Larger backlight draws more current (~80-150mA)
- 🎨 Text Only – Cannot display graphics, images, or shapes
- ⚡ 5V Logic Required – Needs level shifter for 3.3V systems
- 🔄 Slow Updates – Not suitable for animations or fast changes
- 👁️ Viewing Angle – Limited compared to modern TFT displays
🔧 Arduino Connection (4-Bit Parallel Mode)
| LCD Pin | Arduino Pin | Notes |
| VSS (Pin 1) | GND | Ground |
| VDD (Pin 2) | 5V | Power supply |
| V0 (Pin 3) | Potentiometer wiper | Contrast adjust (10kΩ pot) |
| RS (Pin 4) | Digital Pin 12 | Register select |
| R/W (Pin 5) | GND | Always write mode |
| E (Pin 6) | Digital Pin 11 | Enable |
| D4 (Pin 11) | Digital Pin 5 | Data bit 4 |
| D5 (Pin 12) | Digital Pin 4 | Data bit 5 |
| D6 (Pin 13) | Digital Pin 3 | Data bit 6 |
| D7 (Pin 14) | Digital Pin 2 | Data bit 7 |
| A (Pin 15) | 5V (via 220Ω resistor) | Backlight + |
| K (Pin 16) | GND | Backlight – |
💻 Basic Arduino Code Example
| 4-Bit Parallel Mode – Multi-Sensor Display | |
|
#include <LiquidCrystal.h>
// Initialize LCD (RS, E, D4, D5, D6, D7) void setup() { void loop() { |
📊 Row Addressing (Important!)
| Logical Row | setCursor Row Value | Note |
| Line 1 (Top) | lcd.setCursor(0, 0) | Row 0 |
| Line 2 | lcd.setCursor(0, 1) | Row 1 |
| Line 3 | lcd.setCursor(0, 2) | Row 2 |
| Line 4 (Bottom) | lcd.setCursor(0, 3) | Row 3 |
🔍 Troubleshooting
| No Display Visible | Check power (VDD/VSS), verify 5V supply stable |
| Blank Screen with Backlight | Adjust contrast potentiometer slowly until text appears |
| Only 2 Lines Showing | Verify lcd.begin(16, 4) not lcd.begin(16, 2) |
| Garbled Text | Check data pins (D4-D7), verify wiring matches code |
| Lines 3-4 Not Working | May be 16×2 LCD incorrectly labeled, verify actual model |
| White Boxes Only | Contrast too high or code not uploaded, check both |
| Dim Backlight | Increase current (use 150Ω resistor instead of 220Ω) |
| Text Overlapping | Add spaces to clear old text, use proper setCursor() |
💡 Pro Tips for 16×4 LCDs
- 📊 Organize Data Logically – Group related info on same line
- 📏 Pad with Spaces – Use 16-char strings to clear old data completely
- 🔄 Update Only Changed Lines – Don’t rewrite entire display, reduces flicker
- 🎨 Create Labels – Use first chars for labels (e.g., “Temp: 25.3C”)
- ⚡ Control Backlight – PWM transistor control saves power, adjustable brightness
- 💻 Use String Formatting – sprintf() for consistent formatting
- 📦 I2C Highly Recommended – Saves GPIO pins, worth $2-3 extra cost
- 🔋 Power Management – Turn off backlight when idle (saves 80-150mA)
🎓 Example Display Layouts
| Weather Station Layout | |
|
Line 0: “Temp: 25.3°C “ Line 1: “Humid: 65.2% “ Line 2: “Press: 1013hPa” Line 3: “12:34 PM 25/12” |
| Robot Status Display | |
|
Line 0: “Battery: 85% “ Line 1: “Distance: 45cm “ Line 2: “Speed: 0.5m/s” Line 3: “Status: Active” |
📦 Package Contents (Typical)
- ✅ 1x 16×4 LCD Display Module (HD44780 compatible)
- ✅ 16-pin male header (may require soldering)
- ✅ LED backlight (blue or green, pre-installed)
- ⚠️ Note: 10kΩ potentiometer for contrast sold separately
- ⚠️ Note: I2C adapter module sold separately ($2-3 extra)
- ⚠️ Note: Jumper wires not included
- ⚠️ Note: Arduino/microcontroller sold separately
- ⚠️ Note: 220Ω backlight resistor recommended (may not be included)
🔧 I2C Connection (Recommended)
| I2C Adapter Pin | Arduino Pin |
| VCC | 5V |
| GND | GND |
| SDA | A4 (Uno) or SDA pin |
| SCL | A5 (Uno) or SCL pin |
| I2C Arduino Code | |
|
#include <Wire.h> #include <LiquidCrystal_I2C.h> // Initialize (address, cols, rows) void setup() { |
💰 Cost Comparison
| 16×4 LCD (parallel) | $5-8 |
| 16×4 LCD (with I2C) | $8-12 |
| 16×2 LCD (parallel) | $3-5 |
| 20×4 LCD (parallel) | $8-15 |
| Cost per Character | 16×4 = $0.08-0.19/char |
🎓 Real-World Application Examples
- 🌡️ Environmental Monitor – Temp, humidity, pressure, air quality on 4 lines
- ⚙️ CNC Machine Display – X/Y/Z position, feed rate, tool number, status
- 🏭 Production Counter – Today’s count, shift total, target, efficiency %
- 💻 Server Monitor – CPU%, RAM usage, disk space, network status
- 🔋 Battery Monitor – Voltage, current, power, capacity remaining
- 🚗 Car Computer – Speed, RPM, temp, fuel consumption
- 🏠 Smart Home Hub – Time, temp, alarm status, upcoming events
- 📊 Multi-Channel Logger – 4 independent sensor readings
🔋 Power Consumption
| LCD Logic (no backlight) | ~1-3mA |
| Blue Backlight | ~100-150mA @ 5V |
| Green Backlight | ~80-120mA @ 5V |
| Total Power (with backlight) | ~80-150mA typical |
| Power @ 5V | ~0.4-0.75 watts |
🆚 Character LCD Size Comparison
| Size | Characters | Lines | Best For |
| 8×2 | 16 total | 2 lines | Very compact projects |
| 16×2 | 32 total | 2 lines | Most basic projects |
| 16×4 | ✅ 64 total | ✅ 4 lines | Multi-parameter display |
| 20×2 | 40 total | 2 lines | Wider data per line |
| 20×4 | 80 total | 4 lines | Maximum text capacity |
🔧 Compatible Platforms
- ✅ Arduino – Uno, Mega, Nano, Due (all models)
- ✅ Raspberry Pi – All versions (GPIO or I2C)
- ✅ ESP8266/ESP32 – IoT projects (use level shifter or 5V tolerant pins)
- ✅ STM32 – ARM Cortex microcontrollers
- ✅ PIC – Microchip PIC series
- ✅ AVR – ATmega, ATtiny series
- ✅ BeagleBone – Single-board computers
- ⚠️ 3.3V Systems – Requires level shifter for safe 5V LCD operation
🛡️ Product Information
✅ 16×4 Character LCD Display Module – HD44780 Compatible
✅ Display format: 16 characters × 4 lines (64 characters total)
✅ Character size: 5×8 dots per character
✅ Controller: HD44780 or compatible (dual enable architecture)
✅ Operating voltage: 5V DC (logic and backlight)
✅ Current draw: 1-3mA (logic only), 80-150mA (with backlight)
✅ Backlight: Blue or Green LED (varies by model)
✅ Interface: 16-pin parallel (4-bit/8-bit) or I2C (with adapter module)
✅ Contrast: Adjustable via 10kΩ potentiometer (Pin 3)
✅ Module size: ~80×58×13mm, Viewing area: ~64×38mm
✅ Operating temperature: 0°C to +50°C standard
✅ Weight: ~45-55 grams
✅ Custom characters: 8 custom 5×8 characters supported
⚠️ Important: Requires 5V power supply – use level shifter for 3.3V microcontrollers. Contrast potentiometer required (10kΩ on Pin 3). Backlight needs current-limiting resistor (220Ω recommended, 150-330Ω range). Code change from 16×2: lcd.begin(16, 4) instead of lcd.begin(16, 2). Standard parallel uses 6 GPIO pins minimum (4-bit mode). I2C adapter reduces to 2 pins (SDA/SCL) – highly recommended ($2-3 extra). Pin 5 (R/W) typically connected to GND. Backlight draws 80-150mA – consider PWM control. Row addressing: 0, 1, 2, 3 (top to bottom). Arduino library: LiquidCrystal (parallel) or LiquidCrystal_I2C (I2C). I2C address typically 0x27 or 0x3F. Double display capacity vs 16×2 LCD (64 vs 32 characters). Best for: Multi-sensor displays, weather stations, complex menus, industrial panels, data logging, robotics.
