Description
🔧 FlySky CT6B 2.4GHz 6-Channel Transmitter & Receiver – Digital Radio Control System
The FlySky CT6B 2.4GHz 6-Channel Transmitter & Receiver is a reliable, cost-effective radio control system designed for RC airplanes, helicopters, drones, and quadcopters. Featuring 2.4GHz AFHDS (Automatic Frequency Hopping Digital System) technology, this combo provides interference-free operation with excellent range and response time. The ergonomic transmitter includes LCD screen, dual-rate switches, programmable mixes, and rechargeable battery, while the compact receiver offers 6 channels of PWM output. Perfect for beginner pilots, trainer aircraft, budget drone builds, and hobbyists seeking dependable radio control without advanced telemetry features.
✨ Key Highlights
- 📡 2.4GHz AFHDS Technology – Automatic frequency hopping, no interference
- 🎮 6-Channel Control – Full control for multi-rotor and aircraft
- 📺 LCD Display – Shows voltage, model memory, timer, trim
- 🔋 Rechargeable Battery – Built-in NiMH battery (12V 1500mAh)
- 📏 Compact Receiver – Lightweight, easy to install (R6B)
- ⚡ Low Latency – Fast response time for precise control
- 💾 5 Model Memory – Store settings for 5 different aircraft
- 🔧 Programmable Mixes – Aileron-rudder, V-tail mixing available
- 📊 Dual Rate & Expo – Adjustable control sensitivity
- 💰 Budget-Friendly – Affordable complete TX/RX combo

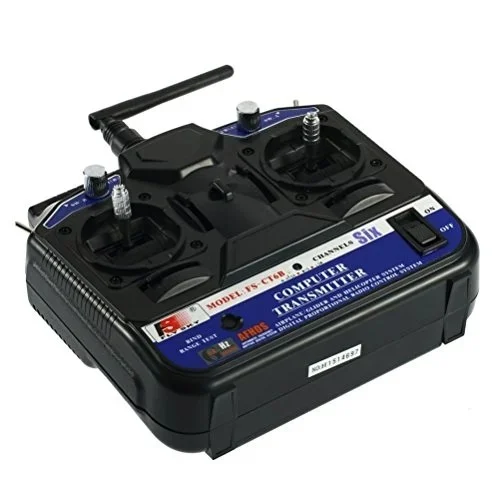

📊 Transmitter (CT6B) Specifications
| 📡 Frequency |
2.4GHz ISM band |
| 🔄 Protocol |
AFHDS (Automatic Frequency Hopping) |
| 🎮 Channels |
6 channels (AETR + 2 AUX) |
| 📏 Range |
~500-800m (open area) |
| 🔋 Battery |
12V 1500mAh NiMH (rechargeable) |
| ⚡ Battery Life |
~6-8 hours typical use |
| 🔌 Charging |
12V DC charger (included) |
| ⏱️ Charge Time |
~4-5 hours |
| 💾 Model Memory |
5 model settings storage |
| 📺 Display |
LCD screen (backlit) |
| ⚖️ Weight |
~650 grams |
| 🌡️ Operating Temp |
-10°C to +60°C |

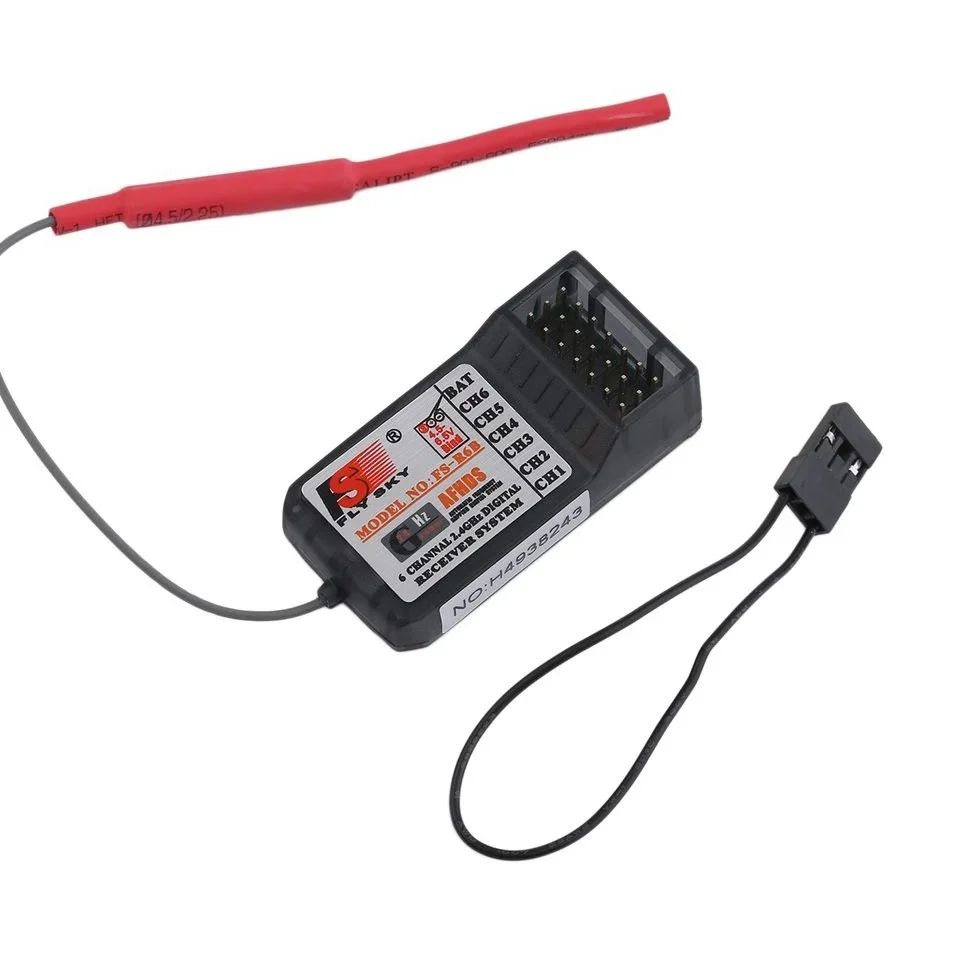

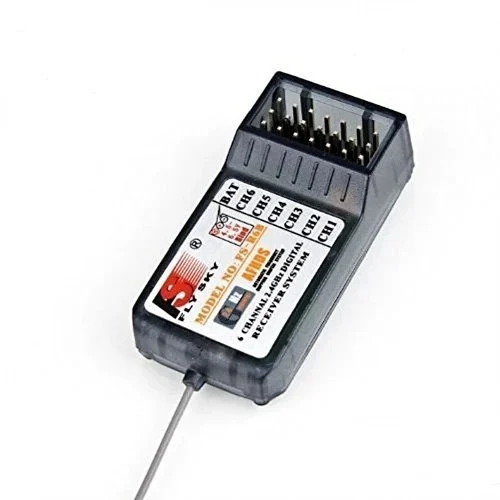

📊 Receiver (R6B) Specifications
| 📡 Frequency |
2.4GHz ISM band |
| 🔄 Protocol |
AFHDS compatible |
| 🎮 Channels |
6 channels PWM output |
| ⚡ Operating Voltage |
4.0V – 8.4V DC |
| 🔋 Current Draw |
~25mA @ 5V |
| 📏 Dimensions |
~47×23×12mm |
| ⚖️ Weight |
~11 grams |
| 🔌 Output Type |
PWM (1520μs neutral) |
| 📊 Resolution |
2048 steps |
| 🛡️ Failsafe |
Programmable per channel |
🎯 Perfect For
- ✈️ RC Airplanes – Trainer and sport aircraft (3-4 channel minimum)
- 🚁 Quadcopters – DIY drones with KK2, CC3D flight controllers
- 🚁 Helicopters – Fixed-pitch and simple collective pitch
- 🚗 RC Cars – Surface vehicles (steering + throttle + extras)
- ⛵ RC Boats – Marine applications requiring 2-4 channels
- 🎓 Beginner Pilots – First radio system, easy to learn
- 🔬 Educational Projects – Schools, training programs
- 💰 Budget Builds – Cost-effective complete radio solution

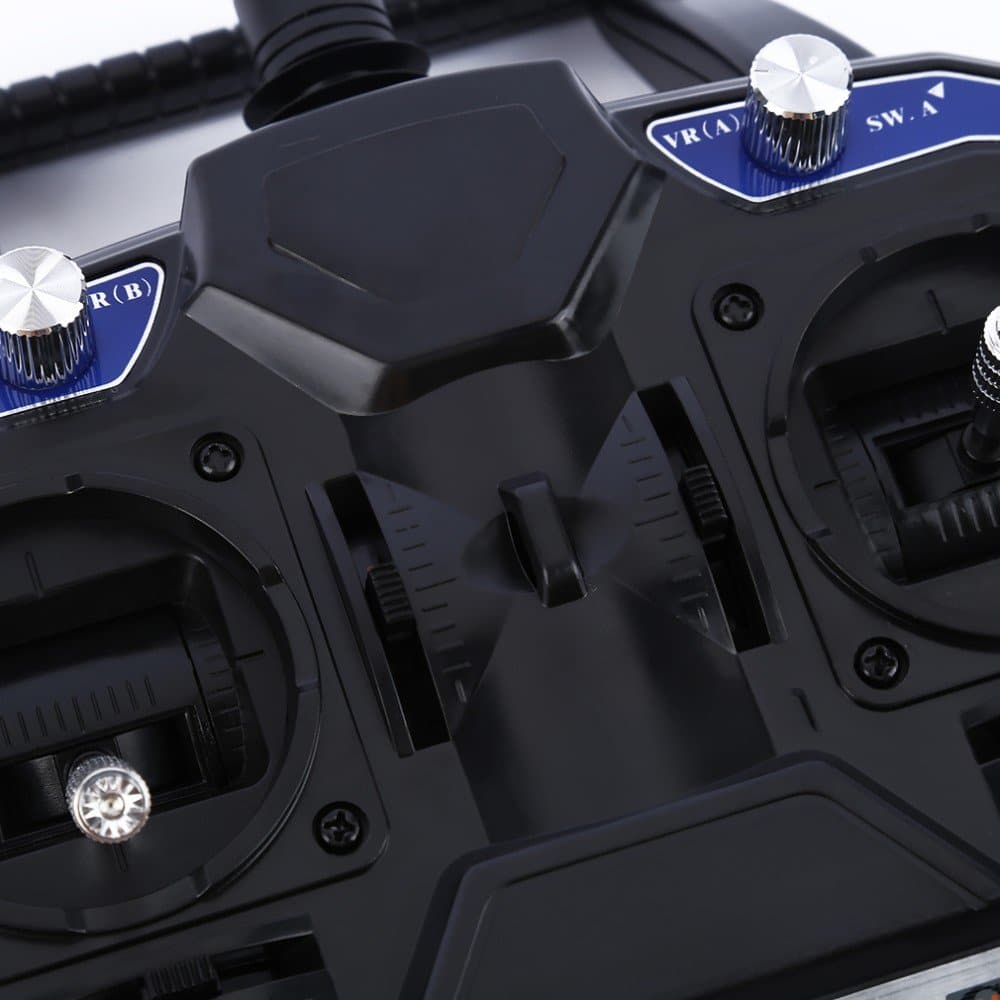

🎮 Channel Configuration
| Channel 1 |
Aileron (Roll) – Right stick left/right |
| Channel 2 |
Elevator (Pitch) – Right stick up/down |
| Channel 3 |
Throttle – Left stick up/down |
| Channel 4 |
Rudder (Yaw) – Left stick left/right |
| Channel 5 |

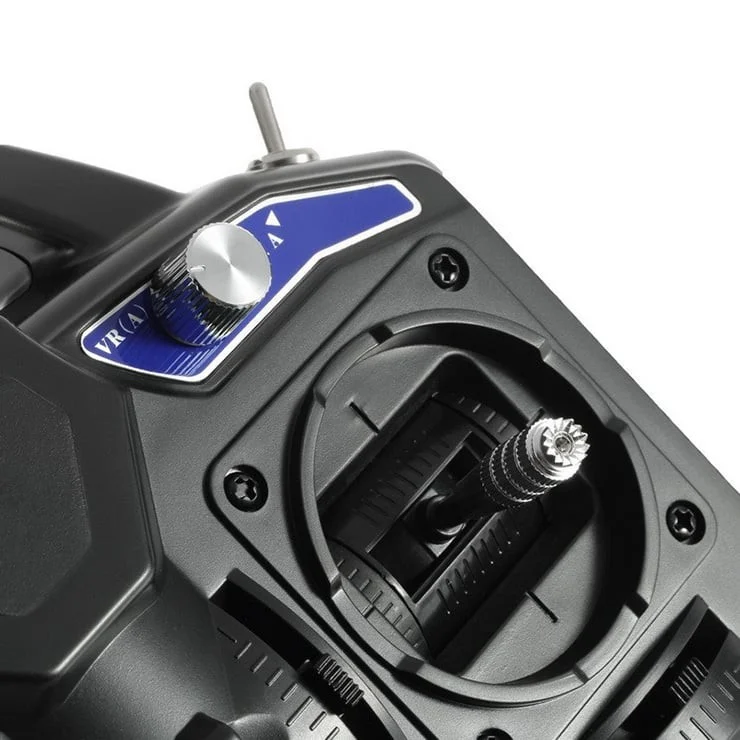

AUX1 – Switch VRA (3-position) |
| Channel 6 |
AUX2 – Switch VRB (2-position) |
🔧 Transmitter Features
| Model Memory |
Store 5 different model settings |
| Timer Function |
Countdown/up timer for flight time tracking |
| Dual Rate |
High/low control sensitivity (D/R switch) |
| Exponential |
Adjust stick response curve (0-100%) |
| Servo Reverse |
Reverse servo direction per channel |
| Sub Trim |
Fine-tune neutral position per channel |
| End Point Adjust |
Limit servo travel per channel |
| Aileron-Rudder Mix |
Coordinated turns for aircraft |
| V-Tail Mix |
For V-tail aircraft configuration |
| Trainer Function |
Master/student mode via buddy box cable |
✅ Key Advantages
- 📡 2.4GHz AFHDS – No frequency conflicts, multiple pilots fly together
- 💰 Complete Package – TX + RX combo, ready to use
- 🔋 Rechargeable – Built-in NiMH battery, no AA batteries needed
- 💾 5 Model Memory – Switch between aircraft without re-programming
- 📺 LCD Display – Clear information at a glance
- 🎮 6 Channels – Enough for most RC applications
- ⚡ Fast Response – Low latency for precise control
- 🔧 Programmable – Mixes, dual rate, expo, failsafe
- 📏 Compact Receiver – Lightweight, fits in small models
- 🛡️ Failsafe – Programmable failsafe prevents flyaways
⚠️ Important Notes

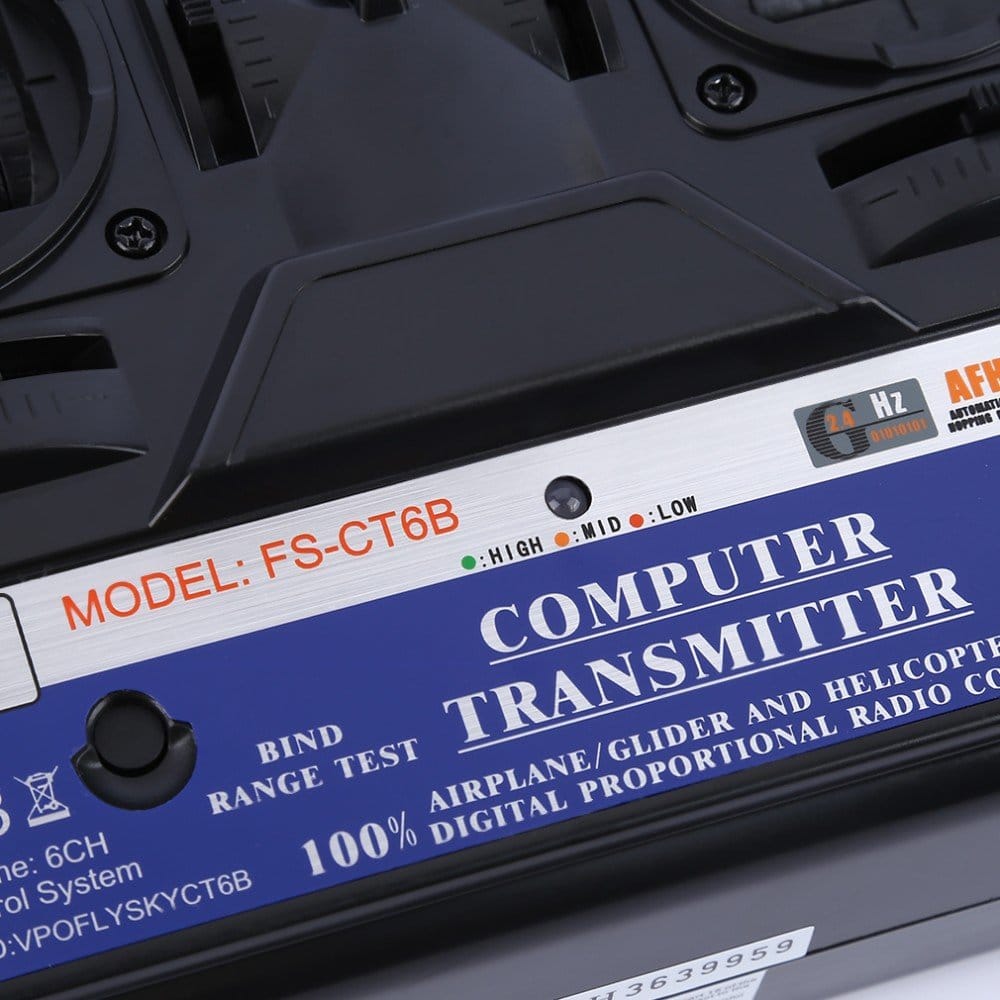

🔧 Binding Procedure
| 1. Power Off TX |
Ensure transmitter is turned off |
| 2. Connect Bind Plug |
Insert bind plug into receiver BIND/BAT port |
| 3. Power Receiver |
Connect battery/power to receiver (LED flashes) |
| 4. Power On TX |
Turn on transmitter (hold bind button if needed) |
| 5. LED Solid |
Receiver LED becomes solid = binding successful |
| 6. Remove Bind Plug |
Disconnect bind plug, power cycle receiver |
| 7. Test Control |
Verify all channels respond correctly |
🔍 Troubleshooting
| No Binding |
Check bind plug position, verify TX powered on |
| Weak Signal |
Extend RX antenna, avoid metal enclosures |
| Servo Jitter |
Check power supply, ensure clean 5V to receiver |
| Wrong Direction |
Use servo reverse function in TX menu |
| Short Battery Life |
Fully charge TX battery, replace if old |
| LCD Dim/Blank |
Charge battery, check backlight setting |
| Lost Connection |
Re-bind TX and RX, check antenna orientation |
💡 Pro Tips
- 🔋 Fully Charge First – Charge TX battery 4-5 hours before first use
- 📡 Antenna Vertical – Keep receiver antenna straight up for best range
- 🎮 Use Model Memory – Save settings for each aircraft separately
- ⚖️ Set Failsafe – Program throttle to cut on signal loss (safety)
- 🔧 Test Before Flying – Range check before each flight session
- 📊 Start with Dual Rate Low – Gentler controls for beginners
- 🔌 Secure Receiver – Use foam tape, avoid vibration damage
- ⏱️ Use Timer – Set flight timer to track battery usage
🔧 Failsafe Configuration
| Enter Failsafe Mode |
Go to TX failsafe menu |
| Set Throttle |
Set Channel 3 to minimum (motor off) |
| Other Channels |
Set to neutral or desired position |
| Save Settings |
Confirm and save failsafe to receiver |
| Test Failsafe |
Turn off TX, verify throttle cuts |
🔋 Battery Care & Charging
| Initial Charge |
4-5 hours before first use |
| Regular Charging |
After each flying session or weekly |
| Charge Time |
4-5 hours (don’t overcharge >8 hours) |
| Storage |
Charge monthly if not in use |
| Low Voltage Warning |
LCD shows “LOW” – charge immediately |
| Battery Life |
~6-8 hours typical flying time |
📦 Package Contents
- ✅ 1x FlySky CT6B Transmitter (Mode 2)
- ✅ 1x FlySky R6B Receiver (6-channel)
- ✅ 1x 12V NiMH Rechargeable Battery (installed in TX)
- ✅ 1x Wall Charger (12V DC adapter)
- ✅ 1x Bind Plug
- ✅ 1x User Manual
- ⚠️ Note: Servos sold separately
- ⚠️ Note: Aircraft/drone sold separately
- ⚠️ Note: Buddy box cable sold separately (if needed)
🎓 Example Quadcopter Setup (CT6B)
- 🚁 Frame – F450 quadcopter (450mm)
- 🎮 Flight Controller – KK 2.1.5 or CC3D
- 📡 Receiver – R6B (included with CT6B)
- 🔄 Channel 1-4 – AETR connected to FC
- 🎮 Channel 5 – Self-level mode switch
- 🎮 Channel 6 – Arm/disarm switch
- ✅ Result – Full quadcopter control with mode switching
🎮 Transmitter Modes Explained
| Mode 1 |
Throttle on right stick (popular in Europe/Asia) |
| Mode 2 |
Throttle on left stick (popular in USA) – CT6B default |
🔧 Compatible Flight Controllers
- ✅ KK 2.1.5 – Multi-rotor LCD flight controller
- ✅ CC3D – OpenPilot/LibrePilot flight controller
- ✅ Naze32 – Baseflight/Cleanflight compatible
- ✅ F3/F4 Boards – With PWM receiver inputs
- ✅ APM 2.6/2.8 – ArduPilot Mega controllers
- ⚠️ Note: Not compatible with SBUS/PPM-only controllers without adapter
📊 LCD Display Information
| Battery Voltage |
Shows TX battery level (12V nominal) |
| Model Number |
Current model memory slot (1-5) |
| Timer |
Flight time counter (up or down) |
| Trim Position |
Visual trim indicators for each channel |
| Low Battery |
Warning when voltage drops below threshold |
🆚 CT6B vs Other Budget Transmitters
| Feature |
CT6B |
Basic 4CH |
| Channels |
✅ 6 channels |
4 channels |
| Model Memory |
✅ 5 models |
Usually 1 only |
| LCD Display |
✅ Yes |
❌ No |
| Mixes |
✅ Multiple mixes |
❌ No |
| Failsafe |
✅ Programmable |
Basic/none |
| Best For |
Multi-rotor, complex models |
Simple aircraft/cars |
🔧 Menu Navigation
- 🎮 MODE Button – Enter/exit menu system
- ⬆️ UP/DOWN – Navigate menu items
- ✅ OK Button – Select/confirm menu item
- 🔙 CANCEL Button – Exit without saving
- 📺 LCD Shows – Current menu path and values
🛡️ Product Information
✅ FlySky CT6B 2.4GHz 6-Channel Transmitter & Receiver Combo
✅ 2.4GHz AFHDS (Automatic Frequency Hopping Digital System)
✅ Transmitter: 6 channels, LCD display, rechargeable battery
✅ Receiver: R6B 6-channel, PWM output, compact design
✅ Range: 500-800m open area
✅ Model memory: Store 5 different aircraft settings
✅ Battery: 12V 1500mAh NiMH rechargeable (6-8 hours runtime)
✅ Features: Dual rate, expo, mixes, servo reverse, failsafe
✅ Receiver: 4-8.4V input, 6 PWM outputs, 11g weight
✅ Compatible with: RC planes, helicopters, quadcopters, cars, boats
✅ Mode 2 (throttle left stick) – standard USA configuration
✅ Includes: TX, RX, charger, bind plug, manual
⚠️ Important: Requires binding before first use. Charge transmitter battery 4-5 hours before use. PWM output only (not compatible with SBUS/PPM without adapter). Receiver needs 4-8.4V power (5V typical from BEC). Set failsafe to cut throttle for safety. Range test before each flight. Keep receiver antenna vertical for best signal. No telemetry – basic radio only. Compatible with KK2.1.5, CC3D, APM, and other PWM-input flight controllers. Not compatible with high-end FPV racing protocols (requires PWM receiver input on FC).
