1200 KV/1400 KV 2212 BLDC MOTOR

🔧 2212 Brushless DC Motor – 1000KV/1400KV High-Speed Outrunner BLDC Motor

The 2212 Brushless DC Motor is a high-performance outrunner BLDC motor available in 1000KV and 1400KV ratings, designed for drones, quadcopters, RC aircraft, and multi-rotor applications. Featuring a compact 2212 size (22mm diameter, 12mm height), this motor delivers exceptional power-to-weight ratio with efficient brushless design. The KV rating determines RPM per volt – 1000KV provides higher torque for larger props, while 1400KV offers higher speed for smaller props. Perfect for DIY drones, FPV racing, RC planes, and robotics requiring reliable, efficient motor performance.

📊 Technical Specifications

⚡ KV Rating Comparison (1000KV vs 1400KV)

🔋 Battery Compatibility

🎯 Perfect For

• 🚁 Quadcopters/Drones – 450-550mm frame size (4 motors)
• ✈️ RC Airplanes – Small to medium fixed-wing aircraft
• 🏎️ RC Cars/Boats – High-speed racing applications
• 🤖 Robotics – Wheeled robots, propulsion systems
• 📹 Camera Drones – Aerial photography platforms
• 🎮 FPV Racing – Fast, responsive racing drones
• 🔬 DIY Projects – Educational, experimental builds
• ⚙️ Multi-Rotor – Hexacopter, octocopter builds

🚁 Recommended Propeller Sizes

🔧 Required Components

• 🔌 ESC (Electronic Speed Controller) – 20-30A rated, 2-3S compatible
• 🔋 LiPo Battery – 2S (7.4V) or 3S (11.1V), 2200-3300mAh recommended
• 🚁 Propellers – 8-12 inch (see table above for sizing)
• 📡 Flight Controller – For drones (KK2, CC3D, Pixhawk, etc.)
• 📻 RC Receiver – Compatible with transmitter
• 🔌 Connectors – Bullet connectors (3.5mm), XT60 for battery
• 🔩 Mounting Screws – M3×6mm or M3×8mm

✅ Key Advantages

• 🔄 Brushless Design – 10x longer lifespan than brushed motors
• ⚡ High Efficiency – 80-90% efficiency, less heat generation
• 💪 High Power Density – Excellent thrust-to-weight ratio
• 🔇 Quiet Operation – Smooth, low vibration running
• 🛡️ Durable Construction – Aluminum housing, quality bearings
• 🔧 Easy Installation – Standard X-pattern mounting
• 💰 Cost-Effective – Affordable for performance delivered
• ⚙️ Low Maintenance – No brushes to replace
• 🌡️ Heat Resistant – Handles high currents without overheating
• 🔌 ESC Compatible – Works with any 3-phase ESC

⚠️ Important Notes

• 🔌 ESC Required – Cannot run on DC power directly (needs 3-phase ESC)
• ⚡ Current Limit – Do not exceed 20A continuous draw
• 🔋 Voltage Range – Stay within 2S-3S LiPo (7.4V-11.1V)
• 🚁 Propeller Balance – Always balance propellers before use
• 🔩 Secure Mounting – Use Loctite on screws to prevent loosening
• 🌡️ Cooling – Ensure adequate airflow during operation
• 🔌 Wire Connections – Solder bullet connectors, use heat shrink
• 📐 Direction – CW/CCW determined by ESC wire order

🔧 Installation Guide

🔍 Troubleshooting

💡 Pro Tips

• 🔋 Battery Choice – 3S LiPo provides best performance for most applications
• 🚁 Prop Testing – Start with smaller props, increase size gradually
• 🔩 Use Loctite – Apply threadlocker to mounting screws
• ⚖️ Weight Distribution – Balance all 4 motors for smooth flight
• 🔌 Quality ESC – Invest in good ESC for reliable performance
• 📏 Measure Current – Use watt meter to verify safe current draw
• 🌡️ Heat Check – Motor should be warm, not too hot to touch
• 🔧 Regular Inspection – Check for loose screws, worn bearings

🆚 When to Choose 1000KV vs 1400KV

• ✅ Choose 1000KV if: Need heavy lift capacity, longer flight time, larger props, stable hovering, aerial photography
• ✅ Choose 1400KV if: Want higher speed, smaller props, FPV racing, acrobatic maneuvers, lighter builds
• ⚙️ Performance: 1000KV = torque/efficiency, 1400KV = speed/responsiveness
• 💡 General Rule: Lower KV = bigger prop = more thrust, Higher KV = smaller prop = more speed

📦 Package Contents

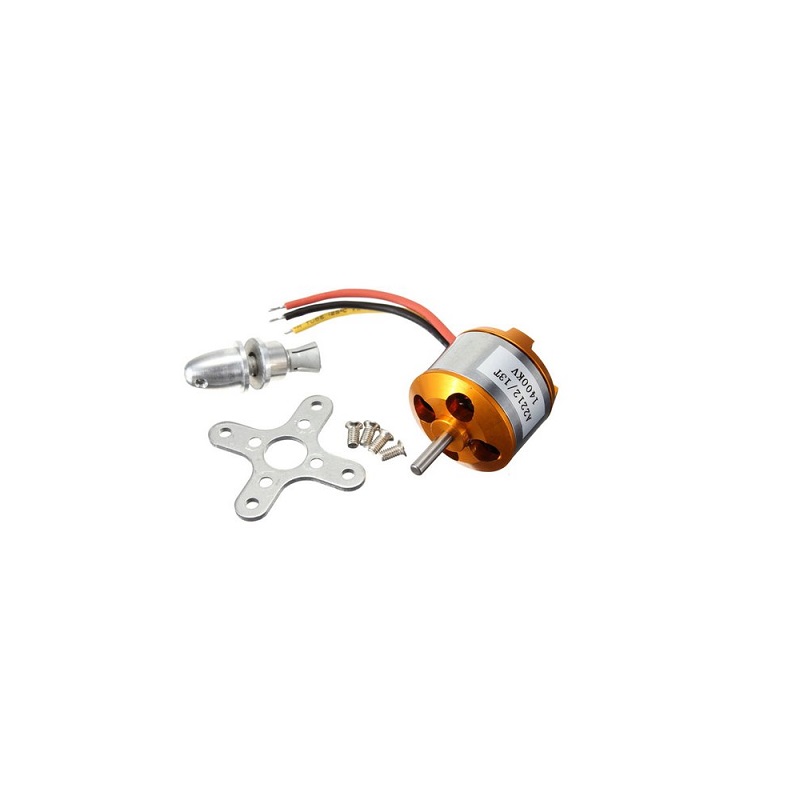

• ✅ 1x 2212 Brushless Motor (1000KV or 1400KV – specify when ordering)

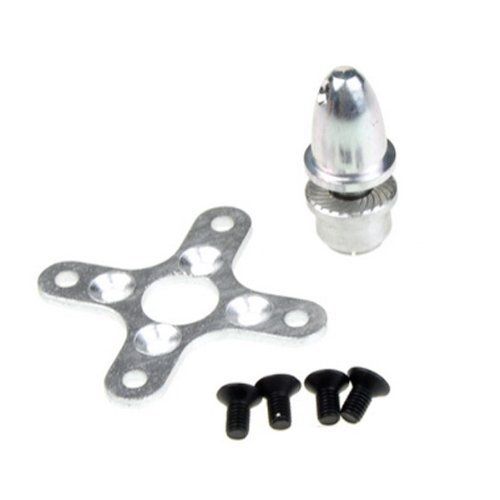

• ✅ 1x Propeller Mounting Adapter/Collet
• ✅ 4x M3 Mounting Screws
• ✅ Pre-soldered motor wires (~100mm length)
• ⚠️ Note: ESC (Electronic Speed Controller) sold separately
• ⚠️ Note: Propellers sold separately
• ⚠️ Note: Battery and connectors sold separately
• ⚠️ Note: Specify KV rating (1000KV or 1400KV) when ordering

🎓 Example Builds

• 🚁 450mm Quadcopter – 4× 1000KV, 3S 2200mAh, 10″ props, 20A ESC
• 🚁 550mm Quadcopter – 4× 1000KV, 3S 3300mAh, 11″ props, 30A ESC
• ✈️ RC Airplane – 1× 1400KV, 3S 2200mAh, 9″ prop, 20A ESC
• 🎮 FPV Racer – 4× 1400KV, 3S 1500mAh, 8″ props, 20A ESC
• 📹 Camera Drone – 4× 1000KV, 3S 3000mAh, 10″ props, 25A ESC

🔧 Motor Specifications Decoded

• 📏 2212 Size – First 2 digits (22) = stator diameter in mm, Last 2 digits (12) = stator height in mm
• ⚡ KV Rating – RPM per volt (e.g., 1000KV @ 10V = 10,000 RPM no load)
• 🔄 Outrunner – Outer shell rotates (better for props vs inrunner)
• 🔌 3-Phase – Requires 3 wires, driven by ESC with 3 phases
• 💪 Poles/Slots – 14 poles, 12 slots = configuration for torque/smoothness
