Description

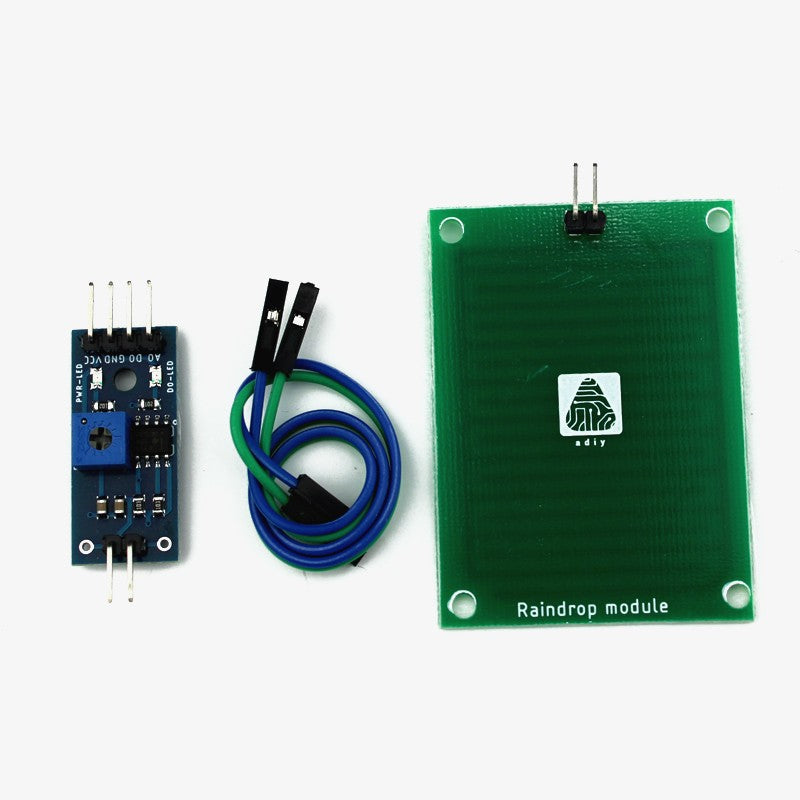

The raindrop sensor module is used for rain detection. It is also for measuring rainfall intensity. The module includes a rain board and a control board that is separate for more convenience. It has a power indicator LED and an adjustable sensitivity though a potentiometer.

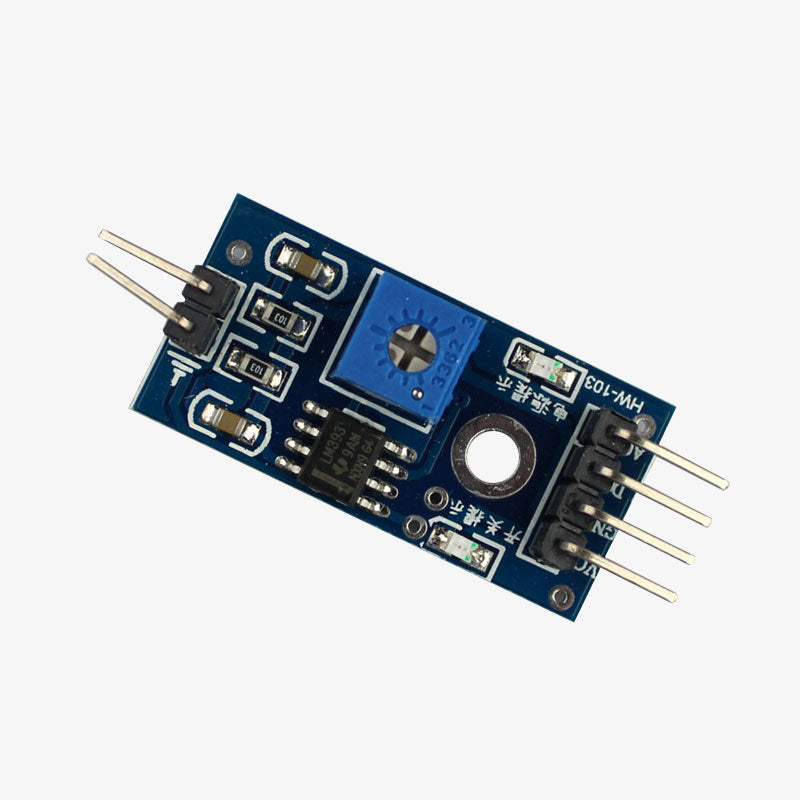

The module is based on the LM393 op-amp. It includes a printed circuit board that “collects” the raindrops. As raindrops are collected on the circuit board, they create paths of parallel resistance that are measured via the op-amp. The lower the resistance, the lower the voltage output. Conversely, the less water, the greater the output voltage on the analog pin. A completely dry board, for example, will cause the module to output five volts.
Specifications:
- Operating voltage: 5V
- Output LED indicator
- Provide both digital and analog output
- Bolt holes for easy installation
- Compatible with Arduino
- Adjustable sensitivity
- TTL Compatible
Pin Description
- Vcc
- GND
- DO: digital output
- AO: analog output
Packages Includes:
1 x The raindrop sensor module set

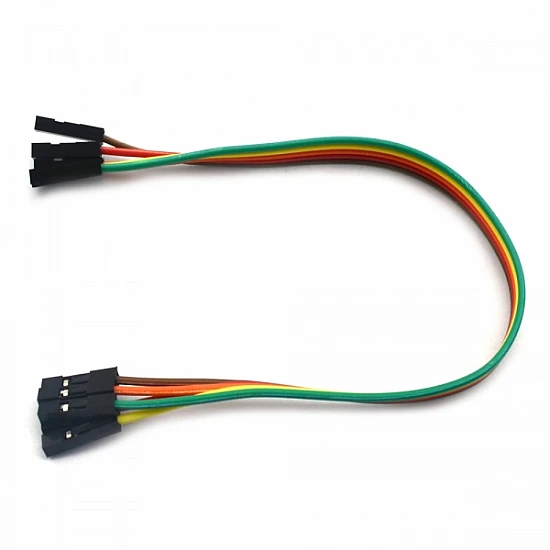

5 x Female/Female jumper wires
